WESMAR: PRODUCTS

Trawl sonars

TCS385 Net Profiler / Downsounder

TCS385 Net Profiler / Downsounder

* Net Profile: View 360 degrees or smaller sectors. Keep watch as the footrope tends the bottom or net. Monitor fish as they enter, go over, or under the net. Watch the net change shape with adjustments and cross currents effects

* Downsounder: A full screen downsounder helping ensure that no fish go undetected

* Split Screen: Downsounder over net profile. Two transducers operate simultaneously for a double view. Downsounder monitors the footrope and bottom, and marks fish in center. Profile transducer scans the net opening in high-resolution. Plus, you can make sure fish are not passing under the net by using the 'zoom-window' feature

* Water temperature and depth: Sensors within the sled give you accurate information at the headrope

* Built rugged, yet lightweight: The TCS385 sled, when submerged, adds just 4.5 kg (10 lbs.) to the headrope

Catalogue:

MODEL

FREQUENCY

(NET PROFILE)

FREQUENCY

(DOWNSOUNDER)

TCS385-180

180KHz

110KHz

TCS385-300

300KHz

200KHz

TCS385-500

500KHz

500KHz


TCS785 Fwd Looker/Net Profiler/Downsound

TCS785 Fwd Looker/Net Profiler/Downsound

Catalogue:



MODEL

FREQUENCY

(FORWARD LOOKER)

FREQUENCY

(NET PROFILE)

FREQUENCY

(DOWNSOUNDER)

TCS785-180

110KHz

180KHz

110KHz

TCS785-300

110KHz

300KHz

110KHz


Catch Sensors

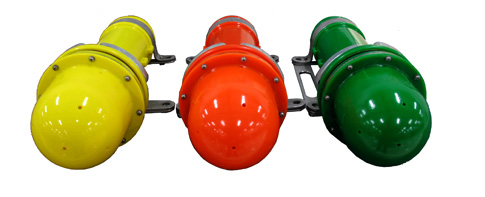

CS30 Catch Sensors

CS30 Catch Sensors

* Ruggedly Built and Dependable

* Five transmits upon triggering. The sensor carrier stays on the net to eliminate refitting for every use.

* Up to 6 sensors can be operated with WESMAR trawl sonars. Up to 4 sensors can be operated with other brands of trawl sonar.

* WESMAR CS30's have a battery life of 700 hours. The full charge time on the CS30 Smart Docking station is just 5 hours.

Catalogue:



WESMAR FRECUENCIES

SETTING NUMBER

UNTRIGGERED FREQUENCY

TRIGGERED FREQUENCY

1

70.7 KHz

71.0 KHz

2

71.6 KHz

72.0 KHz

3

72.6 KHz

73.0 KHz

4

74.6 KHz

75.0 KHz

5

75.6 KHz

76.0 KHz

6

76.6 KHz

77.0 KHz

ALTERNATE FREQUENCIES

SETTING NUMBER

UNTRIGGERED FREQUENCY

TRIGGERED FREQUENCY

1

69.8 KHz

70.2 KHz

2

72.3 KHz

72.7 KHz

3

74.8 KHz

75.2 KHz

4

77.3 KHz

77.7 KHz
